Tantalum capacitors Replace AVX Kemet Vishay Panasonic

2025-08-10

What is Tantalum?

A tantalum capacitor, fully known as a tantalum electrolytic capacitor, is a type of electrolytic capacitor that uses tantalum metal as the dielectric. Unlike ordinary electrolytic capacitors that use electrolyte, tantalum capacitors do not require the use of aluminum foil-wrapped capacitor paper, and they have almost no inductance. Electrolytic capacitors are generally considered to be high-performance electronic components with a long lifespan, and their failure rate can reach level seven under normal conditions. However, they still conform to the general failure patterns of electronic components, namely the bathtub curve, where early failures can be eliminated during the aging process. Therefore, only random failures are possible. This ineffectiveness is often due to manufacturing process control issues and is frequently accompanied by improper use or overload during the product's operation. In summary, there are approximately three modes: current type, voltage type, and heat type.

Tantalum from Hongda Capacitors

Hongda Capacitors is a leading tantalum capacitor supplier in China, providing flexibility and capacity for the demanding electronics industry, and offering general tantalum capacitors, automotive-grade tantalum capacitors, high-temperature tantalum capacitors, and THC tantalum capacitors. It is an factory with certification of ISO9001 and IATF16949. Adopting an open and progressive policy in ethical sourcing, it is the initial company to comply with the OECD guidelines and legislation on conflict materials.

1. It has a high working electric field intensity, which is larger than any other type of capacitor, thus ensuring the miniaturization of tantalum capacitors.

2.It is very easy to obtain large capacity, and has almost no competitors in applications such as power filtering and AC bypass.

3. Has unidirectional conductivity, the so-called "polarity". When used, the current should be connected in the positive and negative directions of the power supply. The anode (positive pole) of the capacitor is connected to the "+" pole of the power supply, and the cathode (negative pole) is connected to the "-" pole of the power supply. If the capacitor is connected incorrectly and the leakage current is large, the core will be heated in a short time, the oxide film will be damaged, and then it will fail.

4.There is a certain upper limit to the operating voltage, but this shortcoming is not important for the matching of transistor or integrated circuit power supplies.

5. It has the functions of electricity storage, charging and discharging.

Hongda Capacitors’ advantage

We start manufacturing since 1999, the ISO9001 qualified factory in China, Perfectly replace: AVX Kemet Vishay Panasonic, etc.

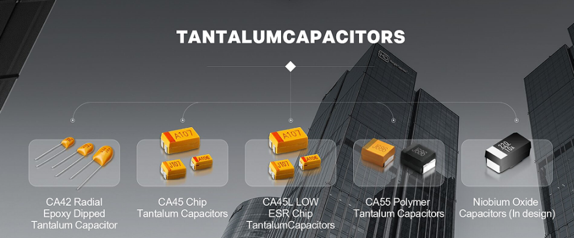

Offering various series, pls find below:

1.Radial Epoxy Dipped Tantalum Capacitor, CA42 Series,

https://www.hongdacap.com.hk/pdf/CA42_Dipped_Tantalum_Cap.pdf

Operating Temperature Range: -55°C ~ +125°C; >85°C(with rated voltage derating);

DC Leakage at 25°C: I o 0.02CR UR or 1uA (whichever is greater)

Capacitance Range: 0.68uF~1000uF

Voltage Range: 6.3V, 10V, 16V, 25V, 35V, 50V

Capacitance Tolerance: K: +/-10%; M: +/-20% (+/-20% tolerance is standard) Package Type: Bulk Package, Ammo Taped in Box

2.Standard Tantalum capacitor, CA45 series,

https://www.hongdacap.com.hk/pdf/CA45_Chip_Tantalum_Capacitor.pdf

Operating Temperature Range: -55°C ~ +125°C; >85°C(with rated voltage derating);

DC Leakage at 25°C: I 0.01CR UR or 0 .5uA (Choose the greater one)

Capacitance Range: 0.68uF~2200uF

Voltage Range: 2.5V, 4V, 6.3V, 10V, 16V, 20V, 25V, 35V, 50V

Fast delivery, 2weeks for regular items.

3.Low ESR Chip Tantalum Capacitors, CA45L Series,

https://www.hongdacap.com.hk/pdf/CA45L_Low_ESR_Chip_Tantalum_Capacitors.pdf

Operating Temperature Range: -55°C ~ +125°C; >85°C(with rated voltage derating);

DC Leakage at 25°C: I 0.01CR UR or 0 .5uA (Choose the greater one)

Capacitance Range: 0.68uF~1000uF

Voltage Range: 4V, 6.3V, 10V, 16V, 20V, 25V, 35V, 50V

Capacitance Tolerance: K: +/-10%; M: +/-20% (+/-20% tolerance is standard)

SPQ: A,B case: 2000pcs/reel; C,D case: 500pcs/reel; E case: 400pcs/reel

How to order, please refer to Part Number System

4.Polymer Tantalum Capacitors, CA55 Series,

https://www.hongdacap.com.hk/pdf/CA55_Polymer_Tantalum_Capacitors.pdf

Conductive polymer electrode reduces ignition failure mode

Lower ESR

Stable capacitance across temperature and voltage

High ripple handling

Volumetrically efficient

No aging effects

High frequency capacitance retention

CV range: 0.68-1000uF / 2.5-50V

7 case sizes available

Military Parts Qualified Factory

RoHS and REACH compliance

Are you looking for tantalum alternative for costs down?

Hongda offers evaluation samples, fast engineering support, and short delivery times to help accelerate your design. Whether you’re designing a new or looking to qualify a cost-effective AVX Kemet Vishay Panasonic replacement, Hongda is your trusted partner.
