MLSH121M250JK0C Replacement | HCD55D 250V 120μF Aluminum Electrolytic Capacitor

2026-08-09

Hongda Capacitors was founded in 1999 and has spent more than 20 years manufacturing aluminum electrolytic capacitors for industrial and military customers in China. Over that time the company has built up a product line that regularly gets pulled in when a Hermetic Slimpack Aluminum Electrolytic Capacitor from an established Western brand needs a second source.

That is the case with the MLSH121M250JK0C. It's a 250V, 120μF Hermetic Slimpack Aluminum Electrolytic Capacitor from Knowles/CDE, and it shows up often in high-reliability designs where board space and long-term stability both matter. The Hongda Capacitors HCD55D Series was developed to sit in that same socket — a Flatpack Aluminum Electrolytic Capacitor built to the same voltage and capacitance rating, aimed at engineers who need an MLSH121M250JK0C alternative without redesigning the circuit.

MLSH121M250JK0C vs. HCD55D — Product Cross-Reference Table

Here's how the two parts line up side by side:

In short: Hongda Capacitors HCD55D = MLSH121M250JK0C alternative, with matching 250V rated voltage and 120μF capacitance.

HCD55D Series — Flatpack Hermetic Aluminum Electrolytic Capacitor

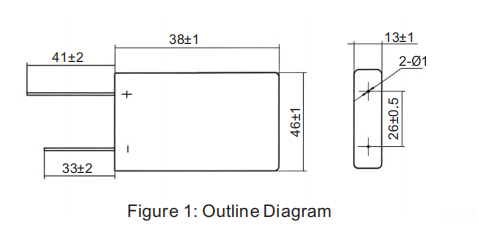

The HCD55D is a Flat Type Solid Aluminum Electrolytic Capacitor housed in a metal case, with terminals on the same side — the same general layout used across most Hermetic Slimpack Aluminum Electrolytic Capacitor families. Key parameters:

• Capacitance: 120μF
• Rated Voltage: 250V
• Operating Temperature: -55°C to +125°C
• Capacitance Tolerance: ±20%
• Low leakage current
• Polarized, hermetically sealed construction

It's a straightforward part electrically, but the hermetic seal and flat form factor are what make it usable in the same footprint as the capacitor it's replacing.

Ultra Long Life Aluminum Electrolytic Capacitors for High-Reliability Circuits

Aluminum electrolytic capacitors in mil and industrial gear are often the component that ages out first, so lifetime under heat is usually the number people care about most. The HCD55D is rated as an Ultra Long Life Aluminum Electrolytic Capacitor — its endurance figures are built around 2000 hours at 125°C, which is the benchmark most Hermetic Slimpack Aluminum Electrolytic Capacitor specs are judged against.

Hongda's Flatpack Aluminum Electrolytic Capacitors, HCD55D included, are used mainly for energy storage, filtering, and bypass in circuits that can't tolerate drift over time or unplanned downtime.

Table 1 — Endurance and High Temperature Storage Characteristics

Test data taken directly from the HCD55D datasheet:

Where the HCD55D Gets Used

As a Hermetic Slimpack Aluminum Electrolytic Capacitor alternative, the HCD55D turns up in equipment where a component failure isn't an option:

• Military electronic control units (ECU)
• Defense electronic systems
• Naval electronic equipment
• Radar and communication systems
• Avionics power modules
• Industrial control systems
• High-reliability power conversion equipment

In most of these, it's doing energy storage, filtering, or bypass work — the same role the MLSH121M250JK0C would otherwise fill.

Why Source This Through Hongda Capacitors

A few practical reasons customers work with Hongda directly rather than through a distributor:

• Direct factory supply from China
• Stable production capacity, even on longer-running orders
• Custom capacitor development for non-standard specs
• Established cross-reference and replacement solutions for international capacitor brands
• Competitive pricing versus Western-brand originals
• Engineering support during qualification

If you're evaluating a Hermetic Slimpack Aluminum Electrolytic Capacitor alternative, a Flatpack capacitor, or an Ultra Long Life Aluminum Electrolytic Capacitor for a new design, this is the kind of request Hongda's engineering team handles regularly.

Frequently Asked Questions (FAQ)

Q: What is the replacement for MLSH121M250JK0C Hermetic Slimpack Aluminum Electrolytic Capacitor?

A: Hongda Capacitors HCD55D Series 250V 120μF Flat Type Solid Aluminum Electrolytic Capacitor is a reliable alternative solution for customers looking for MLSH121M250JK0C replacement.

Q: Is the Hongda Capacitors HCD55D a drop-in replacement for MLSH121M250JK0C?

A: It matches the MLSH121M250JK0C on the specs that matter for a socket-compatible swap — 250V rated voltage, 120μF capacitance, and a comparable flat, hermetically sealed package — so most engineers treat it as a drop-in alternative for industrial and military designs.

Q: What operating temperature range does the HCD55D series support?

A: -55°C to +125°C, with endurance validated at 125°C for 2000 hours and high temperature storage validated at 125°C for 500 hours — see Table 1 above for the full pass/fail requirements.

Q: What is a Flatpack Aluminum Electrolytic Capacitor?

A: It's a flat, low-profile aluminum electrolytic capacitor package — as opposed to the more common cylindrical can — used when board height is limited. The HCD55D and the Hermetic Slimpack Aluminum Electrolytic Capacitor it replaces both use this style of package.

Q: What applications is the HCD55D series used in?

A: Mainly energy storage, filtering, and bypass in industrial and high-reliability circuits — military ECUs, defense electronics, radar and communication systems, and avionics power modules among them.

Have a MLSH121M250JK0C replacement to qualify, or need a Hermetic Slimpack Aluminum Electrolytic Capacitor cross-reference for another part number? Contact Hongda Capacitors' engineering team for evaluation support.
